DTH6R-TX– Dovetail Tool Holder | TORX

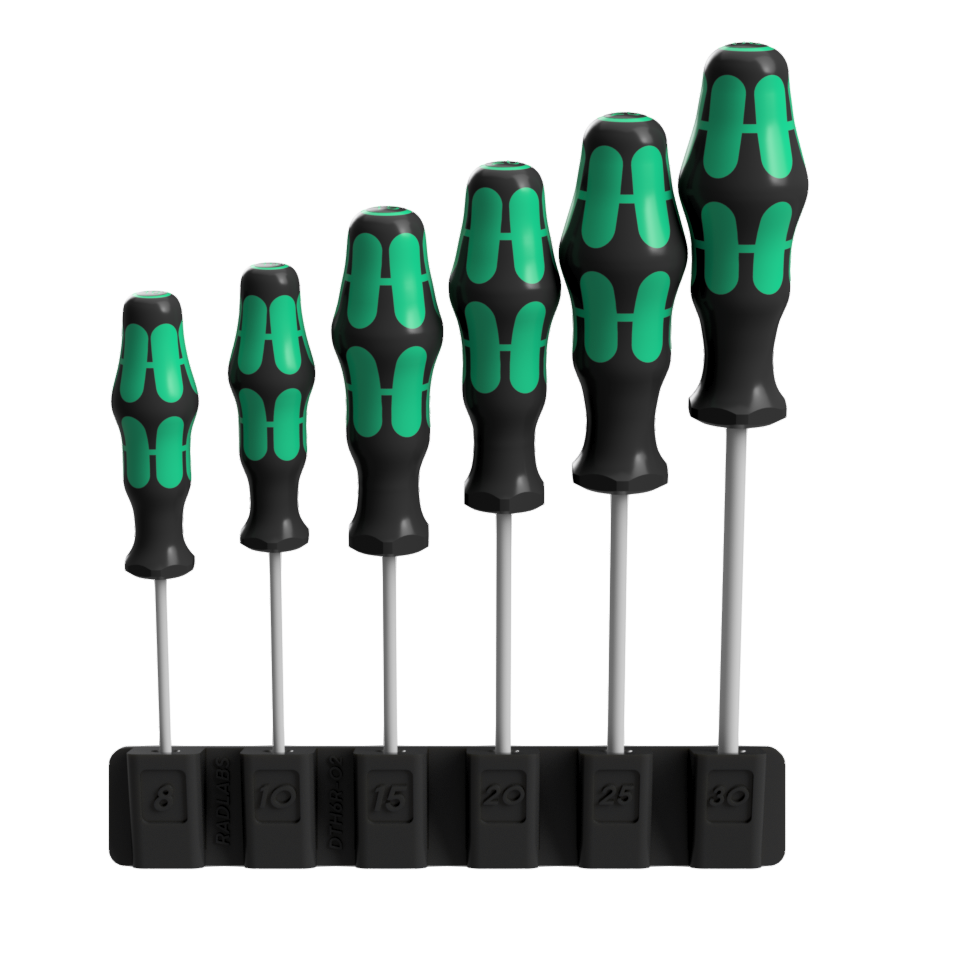

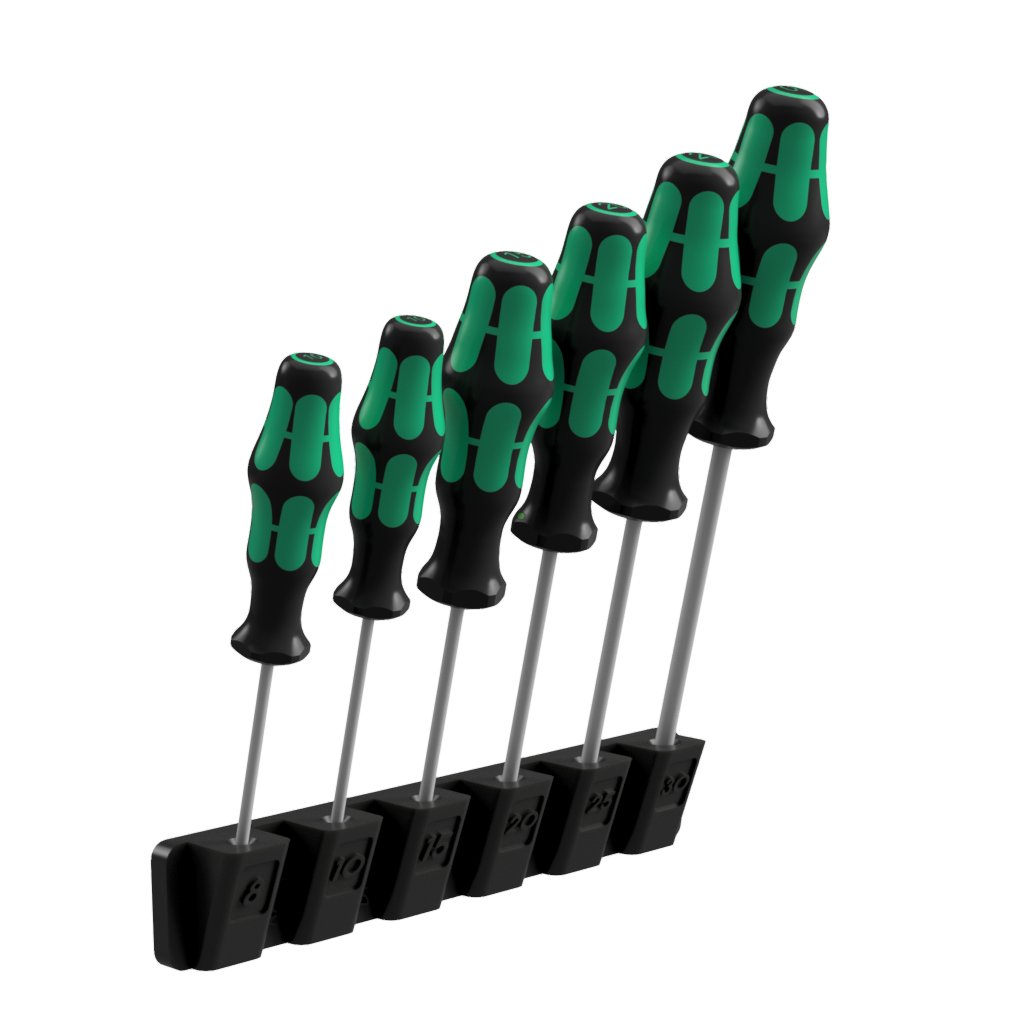

This is the Torx configuration optimized and labeled for Torx Tool sizes T8, T10, T15, T20, T25, T27, T30. This kit includes 7 inserts but only holds 6 inserts for customization of desired / most-used sizes.
Organize your workshop with total flexibility. The DTH6R Dovetail Tool Holder is a modular, wall-mounted storage system designed to give you complete control over your tool layout. Featuring a 6-slot dovetailed base plate, this kit lets you slide, swap, and reconfigure your tool setup in seconds—no additional wall drilling required.
Specifically engineered for tools with a cylindrical or hexagonal shaft, each insert holds your gear at an optimized angle for fast reach and easy retrieval. Mount baseplates side-by-side or terrace them vertically to create a high-density tool wall tailored to your exact workflow.
Key Features
- 3D Printed: Printed on BambuLab P2S with BambuLab PETG-HF, providing durable and highly customizable production. Guaranteed against breakages.

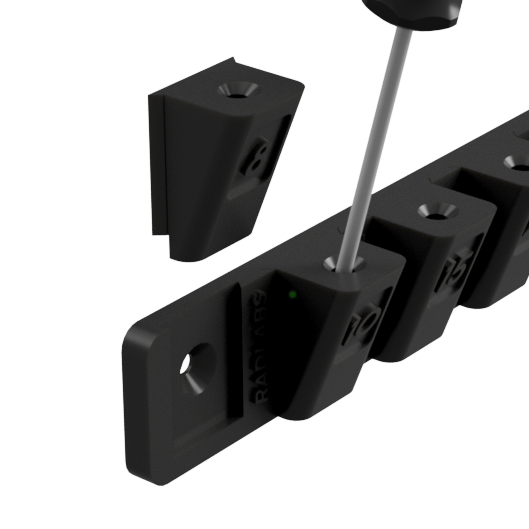

- Modular Dovetail Design: Slide inserts in and out effortlessly to test new layouts or rearrange tools without damaging your wall with extra holes.
- 6-Insert Capacity: Each baseplate holds up to 6 custom dovetail inserts. Configure multiple units to expand your storage array. (3 Screws Included)

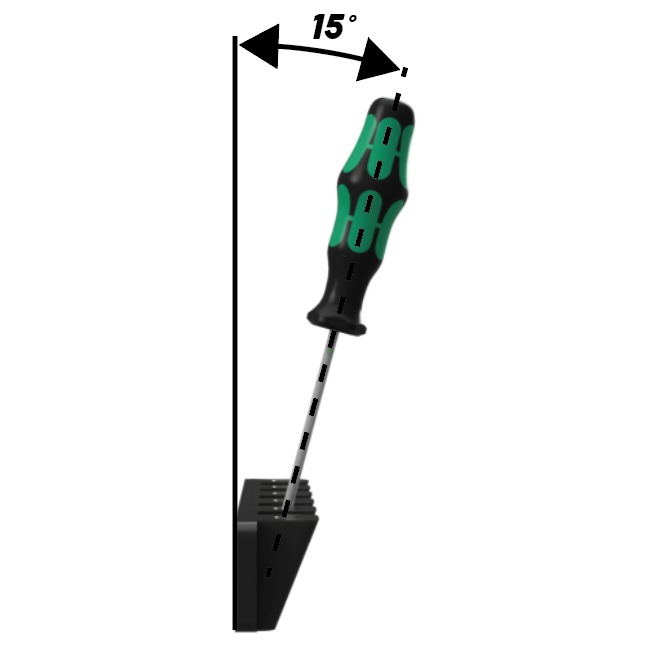

- Angled Tool Holders: Purpose-built for cylindrical tools, holding them at an ergonomic angle for quick access and compact vertical terracing.
- Flexible Wall Mounting: The base plate features multiple pre-drilled mounting holes for versatile positioning options on multiple materials.
- Labeled Tool Holders: Individually labeled holders help identify tool placement and can be painted for better visibility. Click HERE for Custom Tool Holders.
- High-Density Terracing: Mount plates above or below one another to maximize vertical space and keep your bench clear.
CREDIT: WERA SCREW DRIVERS ARE PROPERTY OF @SEEMOMSTER ON GRABCAD.
